XCY Fanless Mini PC Intel Celeron J6412 N5105 2x GbE LAN 2x RS232 HDMI VGA WiFi
SPECIFICATIONS
Audio Port: 1x 3.5mm jack, ALC897
Brand Name: XCY
COM Ports: 2x RS232 Serial Ports
Case Material: Aluminum Alloy
Certification: CE,FCC,RoHS
Construction: Fanless passive cooling
Dimension: 135x124x40mm
Graphics: Intel HD Graphics
Graphics Card Type: Integrated Card
Hard Drive Capacity: 120GB
Hard Drive Type: mSATA SSD
High-concerned chemical: None
LAN Ports: 2x Realtek 8111H Gigabit Ethernet
Max Resolution: FHD 1920*1080P
Memory Capacity: ≥ 4GB
Memory Type: SODIMM DDR3L / DDR4
Model Number: X30G
OS Support: Windows 10, Windows 8.1, Windows 7, Linux, Ubuntu
Origin: Mainland China
Processor Brand: Intel
Processor Main Frequency: Depends on CPU
Processor Model: Intel Celeron J4125, J6412, J2900, 3805U, N5105
Type: Mini Desktop,Mini PC
USB Ports: 4xUSB or 6x USB ports
Use: Multimedia
Video Output: 1x HDMI, 1x VGA
WiFi: 1x Mini PCIe slot for WiFi
Working Voltage: DC12V-3A/5A
XCY X30G Series Fanless Industrial/Embedded Mini PC, Intel Processors, SODIMM-DDR3L/DDR4 RAM, mSATA SSD, HDMI + VGA Display, 2x Serial Ports, 4x USB/6x USB Ports, 2x Gigabit Ethernet, Supports Windows /Linux
- Flexible RAM and storage, 1x memory slot, max support to 8GB; J6412 model supports one M.2 NVME/SATA SSD and one 2.5 inch HDD/SSD, other models support one mSATA SSD and one 2.5 inch SSD/HDD;
- 2x Realtek 8111H Gigabit Ethernet , support Wake on LAN, PXE boot.

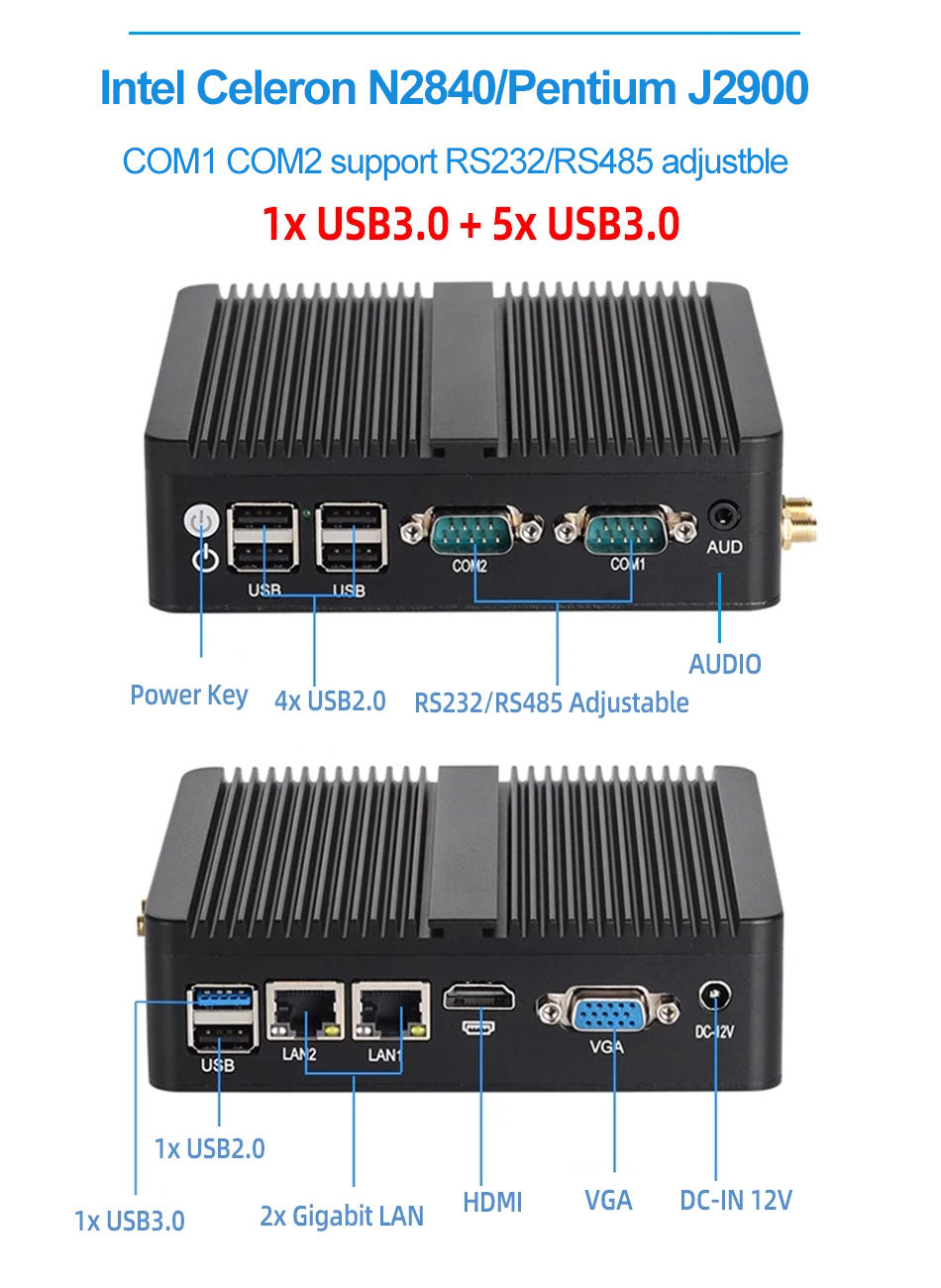

- 2x COM serial ports, J6412/J2900/N2840 model two COM ports support adjust to RS485/RS232, other models two COM ports are RS232 mode.
- HDMI VGA support independent HD video output;
- Fanless aluminum metal case heat dissipation;
- 1x mini PCIE slot support expandsion of WiFi/4G LTE Modules;
- Support automatically power on after AC power restored;
Processors | Intel Celeron J4125, 4 cores 4 threads, 4M Cahce, 2.0GHz, up to 2.70GHz Intel Celeron J6412, 4 cores 4 threads, 1.5M L2 Cache, 2.0GHz, up to 2.60GHz Intel Core i3-5005U, 2 cores 4 threads, 3M Cache, 2.00GHz Intel Core i3-4005U, 2 cores 4 threads, 3M Cahce, 1.70GHz Intel Celeron 2955U, 2 cores 2 threads, 2M Cahce, 1.40GHz Intel Celeron N5105, 4 cores 4 threads, 4M Cache, 2.0GHz, up to 2.90GHz Intel Pentium J2900, 4 cores 4 threads, 2M Cache, 2.41GHz up to 2.66GHz Intel Pentium 3805U, 2 cores 2 threads, 2M Cahce, 1.90GHz Intel Celeron N2840，2 cores 2 threads, 1M Cache, 2.16GHz, up to 2.58GHz |
Memory Types | J4125 J6412 N5105 processors use 1x SODIMM DDR4 RAM, other processors use 1x SODIMM DDR3L 1.35V 1333/1600MHz i3-5005U/J6412/N5105max support to 1x 16GB RAM, others CPUs max support 1x 8GB RAM |

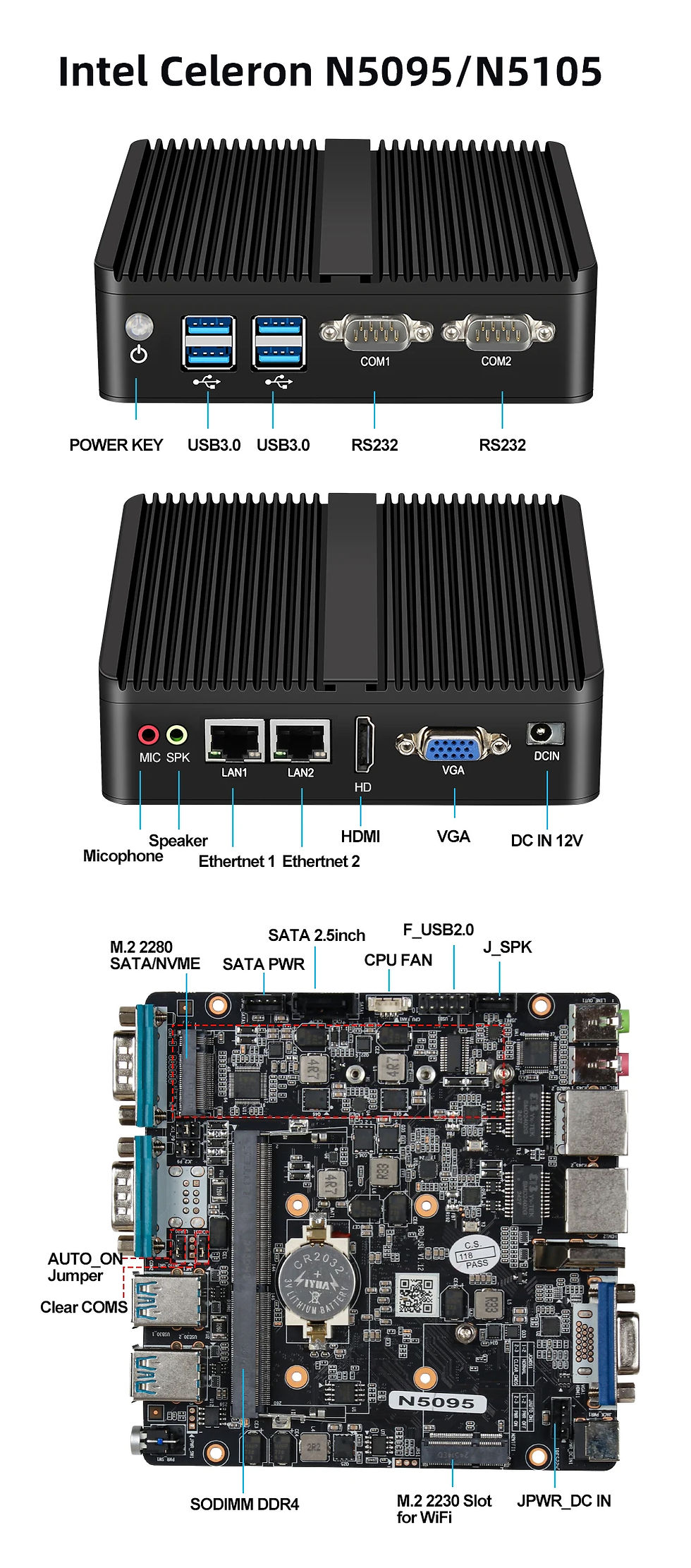

Hard Drive Types | J6412 support 1x M.2 NVME/SATA 2280 SSD, 1x 2.5 inch HDD/SSD; N5105 use M.2 NVMe 2280 SSD, 1x 2.5 inch HDD/SSD; Other CPUs support 1x mSATA SSD, 1x 2.5 inch SATA HDD/SSD |
Processor Graphics | J4125/N5105: Intel UHD Graphics 600 J6412: Intel UHD Graphics for 10th Gen Processor 2955U/J2900/3805U/N2840: Intel HD Graphics i3-4005U: Intel HD Graphics 4400 i3-5005U: Intel HD Graphics 5500 |
Network Interfaces | 2x GbE RJ45 Realtek 8111H, Support Wake on LAN, PXE boot |
Expansion | 1x Mini PCI-E slot for WiFi/Bluetooth/3G/4G modules, J6412/J4125/J2900/N2840 motherboards with 1x SIM slot; other CPUs 's motherboards without SIM slot. |
OS Support | J6412 support windows 11, windows 10, Linux/Ubuntu/CentOS J4125 N5105 support windows 10, Windows 8.1, Linux/Ubuntu/CentOS i3-4005U/i3-5005U Celeron 2955U/N2840 Pentium 3805U/J2900 support Windows 10, Windows 8.1, Windows 7, Linux/Ubuntu/Centos more OS please contact us. |
USB Ports | J4125 J6412: 4x USB3.0 + 2x USB2.0 J2900/N2840: 1x USB3.0 +5x USB2.0 N5105: 4x USB3.0 others CPUs: 2x USB3.0 + 2x USB2.0 |
Display Port | 1x VGA, 1x HDMI, supports dual monitors independently video output |
COM Ports | J6412/J2900/N2840 : 2x RS-232/RS-485, jumper free setting Other CPUs |
